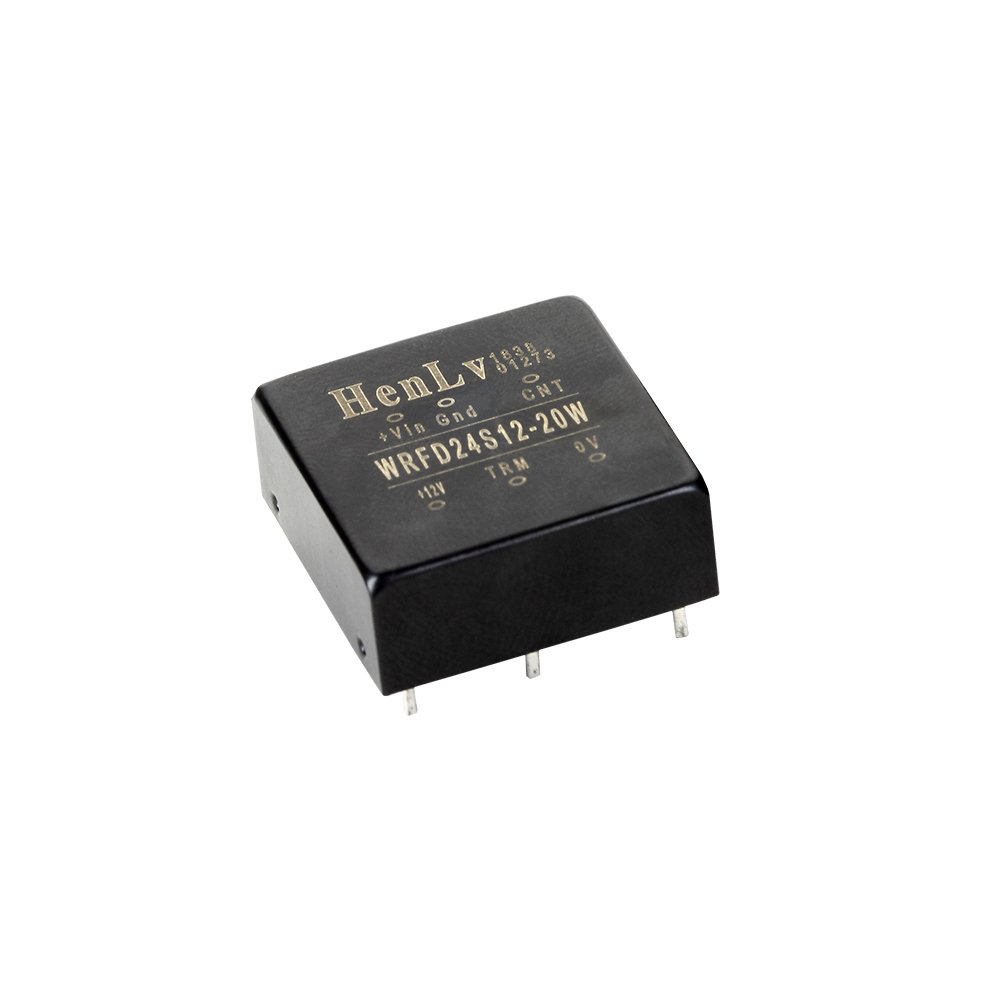

WRFD24S12-20W DC‑DC Converter – 24 V Input → 12 V @ 1.67 A Isolated 20 W Metal‑SIP Module

Original price was: ₹200.00.Current price is: ₹180.00.

SKU: 4104 Category: Tags: , , , , ,
Brand:HenLV

Description

WRFD24S12‑20W DC‑DC Converter – 24 V to 12 V @ 1.67 A | 20 W Metal‑SIP Module

WRFD24S12‑20W from HenLv Power is a high-efficiency, isolated DC‑DC converter designed to convert an 18–36 V DC input into a regulated 12 V DC output at 1.67 A (20 W). The metal‑shielded SIP housing provides excellent EMI protection and thermal stability, perfect for industrial control, automation, and embedded instrumentation applications. [oai_citation:1‡rxicsource.com](https://www.rxicsource.com/product-details/HenLv-Power/WRFD24S05-15W.html?utm_source=chatgpt.com) [oai_citation:2‡digikey.co.uk](https://www.digikey.co.uk/en/products/detail/henlv-power/WRFD24S12-20W/16525225?srsltid=AfmBOoo8liclS06CV1W-s_GK6Tko0KX15968SbYLipofruWmiTfirmgs&utm_source=chatgpt.com)

Technical Specifications:

Specification Details
Part Number WRFD24S12-20W
Input Voltage 18–36 V DC (nominal 24 V)()
Output Voltage / Current 12 V DC @ 1.67 A (20 W)()
Power Rating 20 W()
Efficiency ≈85% typical()
Isolation Voltage 1500 V DC isolation (metal SIP module)()
Operating Temp. –40 °C to +85 °C()
Package Metal‑shielded 6‑pin SIP through‑hole module
Dimensions Approx. 25.4 × 25.4 × 11.8 mm()

Protections & Compliance:

  • Input under-voltage lockout & soft-start
  • Output over-current, over-voltage, and short-circuit protection
  • 1500 V DC isolation meets EN standards
  • CE-approved (EMC standards)()

Applications:

  • Industrial control and PLC systems
  • Embedded instrumentation
  • Telecom and networking equipment
  • Sensor and signal-conditioning power supply
  • Compact systems requiring isolated 12 V rail

Order the WRFD24S12‑20W DC‑DC Converter now from GSSuperstore.in to equip your systems with reliable, isolated 12 V power.
