dsPIC30F2010-30I/SP – 16-bit PIC Microcontroller | 30 MIPS, 48-Pin DIP, Industrial Grade

Description

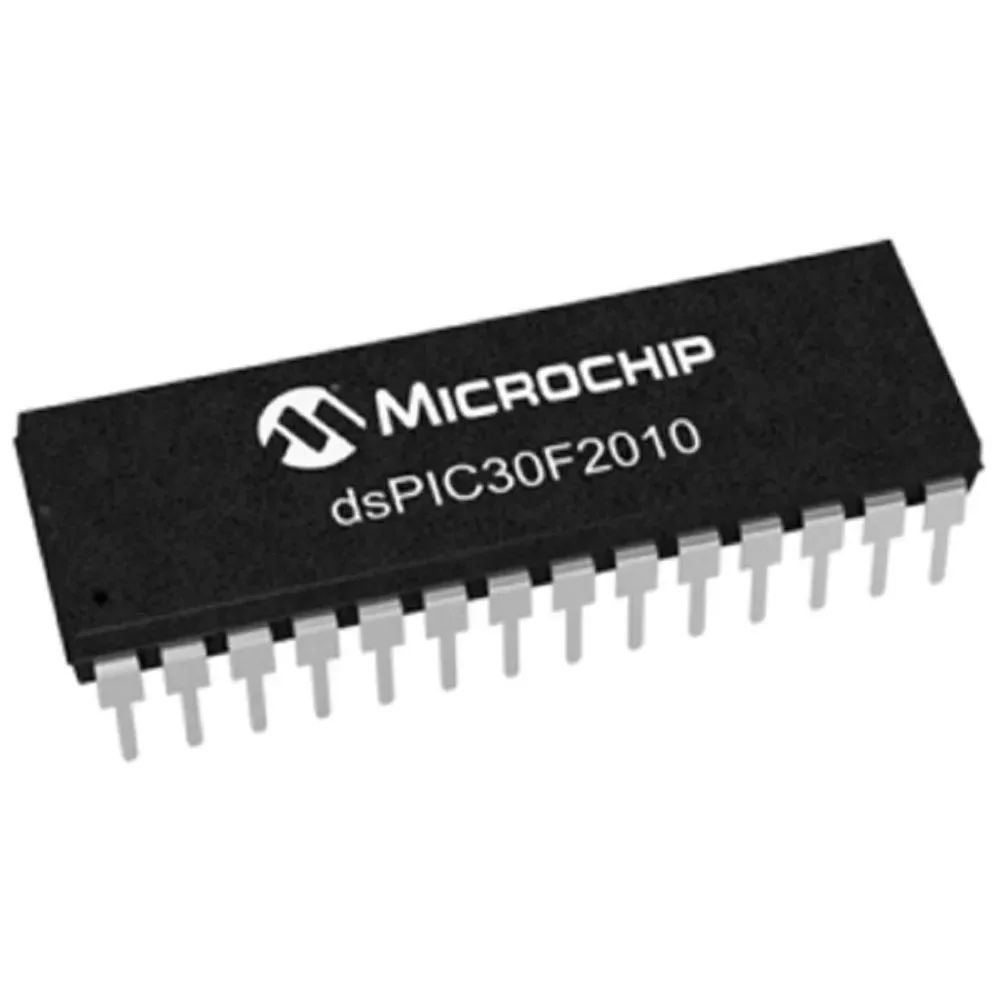

dsPIC30F2010-30I/SP – 16-bit Digital Signal Controller Microcontroller

The dsPIC30F2010-30I/SP is a 16-bit Digital Signal Controller (DSC) that combines the power of a DSP with the simplicity of a microcontroller. It is optimized for real-time control applications where high-speed mathematical calculations and precise peripheral control are essential.

How to Use

• Program using MPLAB X IDE with the XC16 compiler and debug via an ICD/ICSP programmer.
• Connect the PWM outputs to motor driver circuits or power stages for real-time motor control.
• Use the built-in 12-bit ADC to read analog sensors such as current, voltage, or temperature inputs.
• Communicate with other systems using UART, SPI, or I²C interfaces.
• Take advantage of the fast DSP engine for implementing digital filters, control loops, or real-time signal analysis.

Applications

• Motor Control: Ideal for BLDC, PMSM, and AC induction motor drives with advanced PWM generation.
• Digital Power Conversion: Used in UPS, inverters, and switch-mode power supplies.
• Signal Processing: Suitable for FFT, digital filtering, and sensor data processing.
• Embedded Control: Industrial automation, robotics, and instrumentation systems.
• Automotive Systems: Sensor interfacing, small motor control, and power regulation.

With its balance of DSP performance and microcontroller flexibility, the dsPIC30F2010-30I/SP is a preferred choice for designers building cost-effective and reliable real-time control systems.
