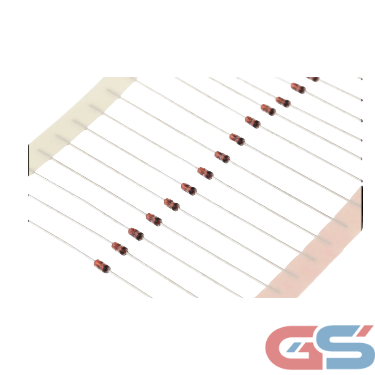

HZ6C3TA-EQ 6.3V 0.5W Zener Diode – Renesas DO-35 Axial

Description

HZ6C3TA-EQ 6.3V 0.5W Zener Diode – Renesas DO-35 Axial

The HZ6C3TA-EQ from Renesas is a 6.3V, 0.5W Zener diode in a DO-35 axial package. It offers stable voltage regulation and over-voltage protection in various electronic circuits. The Renesas build quality ensures reliable performance for power supplies, reference voltages, and protection circuitry in consumer, industrial, and educational projects.

Applications

• Voltage regulation in power supply circuits
• Over-voltage protection for sensitive electronics
• Reference voltage generation
• Clamping and surge protection
• General laboratory, educational, and industrial use

How to Use

1. Place the diode in reverse bias: anode to ground (negative) and cathode (band end) to the circuit point needing voltage stabilization.
2. Ensure the current through the diode does not exceed 0.5W rating by using a series resistor.
3. Avoid exceeding the diode’s maximum temperature rating; allow some heat dissipation space on the PCB.
4. Use in reference voltage loops or as a clamping device to protect downstream components.

Why Choose HZ6C3TA-EQ?

The Renesas HZ6C3TA-EQ is trusted for its low leakage current, low Zener impedance, and consistent performance. Its DO-35 axial package allows easy integration into both prototyping boards and finalized PCBs, delivering stability and durability in demanding environments.
