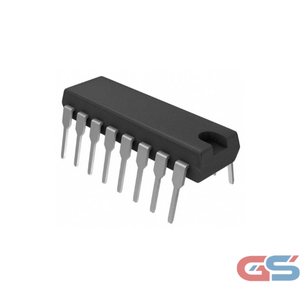

74LS10 – Triple 3-Input NAND Gates IC (DIP Package)
The 74LS10 is a reliable and versatile NAND Gates IC, featuring three independent 3-input NAND gates. Each gate within the IC performs the standard NAND logic operation, which outputs a low level (0) when all inputs are high (1), and outputs high (1) for all other combinations of inputs. This makes it an essential component for a wide range of digital logic circuits, from basic Boolean operations to complex logic systems.
Operating within a voltage range of 4.5V to 5.5V, the 74LS10 utilizes Low Power Schottky (LS) technology, which helps achieve high-speed performance while maintaining low power consumption. The IC is housed in a 14-pin Dual In-line Package (DIP), making it easy to use in various applications like digital counters, multiplexers, and memory devices, as well as in both professional and hobbyist electronic projects.
With a typical propagation delay of just 11ns, the 74LS10 provides fast switching times for your logic circuits, making it suitable for high-speed applications. This IC is ideal for anyone looking to perform NAND operations in digital systems, from signal processing to control systems, while ensuring efficiency and reliability in their designs.
Specifications:
| Specification | Details |
|---|---|
| Package Type | DIP (Dual In-line Package) |
| Logic Family | Low Power Schottky (LS) |
| Number of Gates | 3 Triple 3-input NAND Gates |
| Supply Voltage | 4.5V to 5.5V |
| Propagation Delay | 11ns |
| Operating Temperature | -40°C to +85°C |
| Pin Count | 14 |
| Output Type | TTL-Compatible |
Enhance your digital circuits with the 74LS10 – Triple 3-Input NAND Gates IC at GSSuperstore.in. Order now for efficient logic solutions in your next project!
