Description

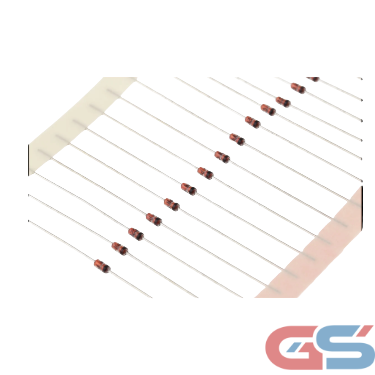

BZX79-B15 – 15V 0.5W Zener Diode DIP
The BZX79-B15 is a high-quality 15V Zener diode designed for stable voltage regulation and over-voltage protection in electronic circuits. With a power dissipation rating of 0.5W, this diode is suitable for use in low-power supply regulation, clamping, and reference applications. Its DIP through-hole package ensures easy handling, reliable soldering, and long service life.
| Specification | Details |
|---|---|
| Part Number | BZX79-B15 |
| Diode Type | Zener Diode |
| Zener Voltage | 15V |
| Power Dissipation | 0.5W |
| Package | DIP / Through-Hole |
| Polarity Marking | Cathode marked with band |
| Manufacturer | Nexperia / Industry Standard |
Applications
- Voltage regulation in power supplies
- Over-voltage protection for sensitive circuits
- Reference voltage generation
- Clamping circuits
- General electronic design and prototyping
How to Use
- Identify the cathode (band-marked end) and connect it to the positive rail.
- Connect the anode to the ground or lower potential side.
- Reverse bias the diode to maintain a steady 15V across the load.
- Use a series resistor to limit current and prevent overheating.
Why Choose BZX79-B15?
The BZX79-B15 Zener diode offers precise 15V regulation in a compact 0.5W DIP package, making it an ideal choice for engineers, students, and hobbyists. It ensures stability, reliability, and ease of integration into both professional and DIY electronic projects.
