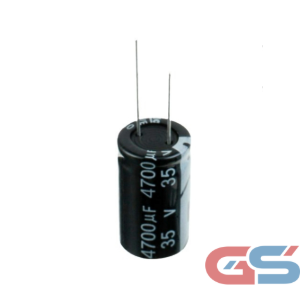

Electrolytic Capacitor 4700uF 35V – Koshin 105°C Radial Type (16×33mm)
The 4700uF 35V Electrolytic Capacitor by Koshin is a high-reliability radial capacitor designed for power supply filtering, decoupling, energy storage, and smoothing applications in DC circuits. With a 105°C temperature rating, it is suitable for demanding environments including SMPS units, audio power amplifiers, LED drivers, motor controllers, inverter circuits, and industrial power control systems. Its compact 16×33mm form factor allows easy integration onto standard PCBs while delivering stable, low-ripple performance.
| Specification | Details |
|---|---|
| Capacitance | 4700uF |
| Rated Voltage | 35V DC |
| Tolerance | ±20% |
| Temperature Rating | 105°C High Temperature Grade |
| Package Type | Radial / DIP Mount |
| Dimensions | 16mm Diameter × 33mm Height |
| Brand / Series | Koshin |
Applications
- Power supply ripple filtering
- Audio amplifiers and speaker crossovers
- LED driver and inverter circuits
- DC motor drivers and robotics systems
- Battery charging, UPS & SMPS power regulation
How to Use
- Identify the positive and negative polarity markings before soldering.
- Mount the capacitor onto the PCB ensuring correct voltage rating and clearance.
- Use a temperature-controlled soldering iron to prevent thermal damage.
- Ensure voltage rating is higher than the operating circuit voltage for long-term reliability.
