Description

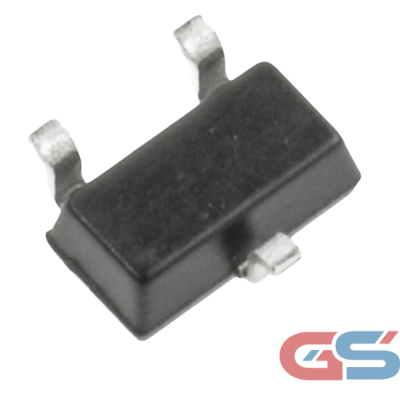

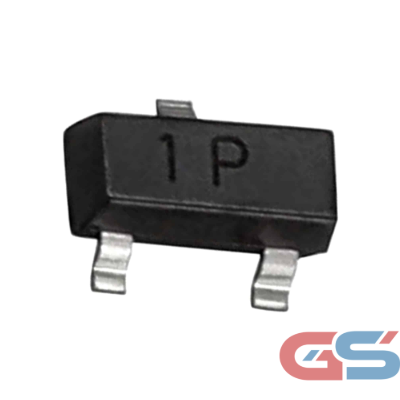

Nexperia PBSS5350T 50V 3A PNP Low VCE(sat) Transistor SOT-89
The Nexperia PBSS5350T is a high-performance PNP Low VCE(sat) bipolar junction transistor (BJT) designed for efficient switching and amplification applications. Packaged in a compact SOT-89 surface-mount package, this transistor offers a 50V collector-emitter voltage and supports up to 3A continuous collector current. Its low saturation voltage minimizes power dissipation and improves overall system efficiency, making it ideal for power management, LED drivers, battery-operated equipment, DC-DC converters, motor control circuits, and industrial electronics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Nexperia |
| Part Number | PBSS5350T |
| Transistor Type | PNP Bipolar Junction Transistor (BJT) |
| Collector-Emitter Voltage (VCEO) | 50V |
| Continuous Collector Current (IC) | 3A |
| Power Dissipation | Approximately 1.25W (PCB Dependent) |
| Package | SOT-89 |
| Mounting Type | Surface Mount (SMD) |
Key Performance Advantages
- Low VCE(sat) design for improved power efficiency.
- High 3A collector current capability in a compact package.
- Reduced heat generation during switching operations.
- Suitable for high-density SMT PCB assembly.
- Excellent reliability for industrial and consumer electronic products.
- Optimized for efficient switching and low-power loss applications.
Typical Applications
- Load switching circuits
- LED driver circuits
- Motor control systems
- Battery-powered electronic devices
- DC-DC converters
- Power management circuits
- Industrial automation equipment
- Consumer electronic products
