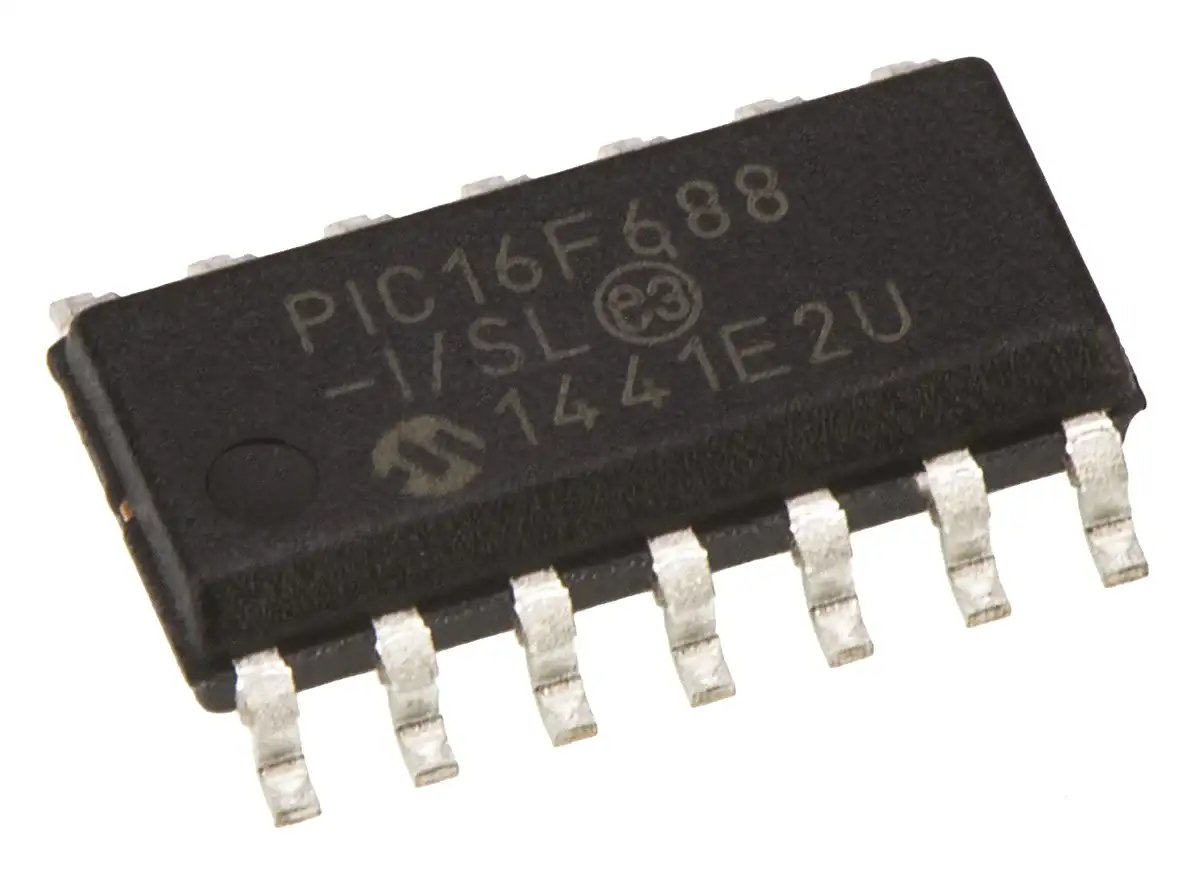

Product Description: PIC16F688-I/SL Microcontroller
The PIC16F688-I/SL is a compact, versatile 8-bit microcontroller from Microchip Technology, designed for a wide range of embedded applications. Its efficient architecture and built-in peripherals make it suitable for projects in consumer electronics, industrial automation, and low-power IoT devices. The PIC16F688-I/SL offers exceptional performance in a small 8-pin SOIC package, making it ideal for space-constrained designs.
Engineered with Microchip’s advanced RISC architecture, this microcontroller supports a wide operating voltage range of 2.0V to 5.5V and integrates a range of features like Analog-to-Digital Converters (ADC), comparators, and UART communication, ensuring seamless operation in diverse applications. Developers benefit from its ease of programming and compatibility with Microchip’s MPLAB ecosystem.
Key Features:
- 8-bit RISC Architecture: Optimized for efficient processing.
- Operating Voltage Range: 2.0V to 5.5V, suitable for low-power designs.
- Integrated ADC: 12 channels with 10-bit resolution for accurate analog signal processing.
- Compact Package: 8-pin SOIC form factor, perfect for space-limited applications.
- Communication Options: UART for serial communication and I²C support.
Detailed Specifications:
| Specification | Details |
|---|---|
| Processor Core | 8-bit PIC RISC |
| Program Memory | 7 KB Flash |
| RAM | 256 Bytes |
| EEPROM | 256 Bytes |
| Operating Voltage | 2.0V to 5.5V |
| Clock Speed | Up to 20 MHz |
| I/O Pins | 6 Digital I/O pins |
| ADC | 12 channels, 10-bit resolution |
| PWM Channels | 1 PWM output |
| Communication Interfaces | UART, I²C |
| Package Type | 8-pin SOIC |
| Temperature Range | -40°C to +85°C |
| Dimensions | 4.9 mm x 3.9 mm |
The PIC16F688-I/SL microcontroller delivers a balanced mix of performance, flexibility, and cost-effectiveness. Its features and compact design make it an excellent choice for embedded engineers and developers seeking a reliable solution for their applications.
