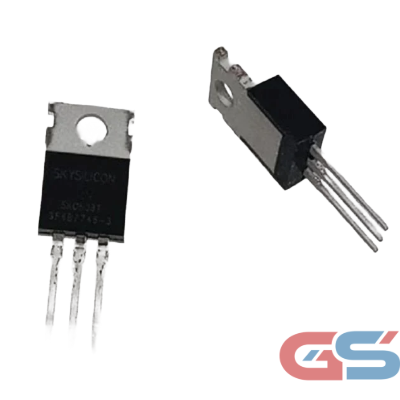

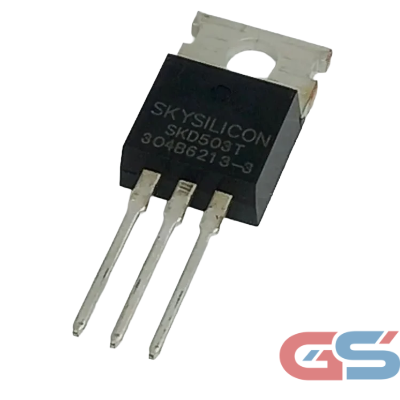

SkySilicon SKD503T 100V 120A N-Channel Power MOSFET TO-220

The SkySilicon SKD503T is a high-performance 100V N-Channel Power MOSFET manufactured using advanced SkyMOS technology to deliver ultra-low ON resistance, fast switching performance, and excellent efficiency in demanding power applications. Supplied in a standard TO-220 package, the SKD503T is designed for high-current switching applications including motor drives, battery management systems, UPS equipment, DC-DC converters, synchronous rectification, and industrial power supplies. Its low RDS(on) minimizes conduction losses, improving thermal performance and overall system efficiency. :chatgpt-content-reference{index=”2″}

Technical Specifications

Key Performance Advantages

• • 100V high-voltage N-channel power MOSFET.
  • Ultra-low 3.6mΩ RDS(on) reduces conduction losses.
  • High continuous drain current capability up to 120A.
  • Fast switching performance for high-efficiency power conversion.
  • 100% avalanche tested for enhanced reliability.

• Suitable for high-current industrial and automotive-style power applications.

Typical Applications

• • Motor control and motor drives

• Battery Management Systems (BMS)
• UPS systems
• DC-DC converters
• Synchronous rectification
• Industrial power supplies
• Solar power systems
• High-current switching applications
