Description

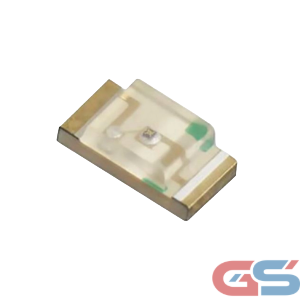

The Everlight SMD LED 1210 White is a compact and efficient surface mount LED designed for a wide range of applications. With stable luminous intensity, low power consumption, and excellent reliability, this LED is widely used in consumer electronics, displays, and lighting solutions. Its 1210 package (3.2mm × 2.5mm) ensures easy PCB mounting and long service life.
| Specification | Details |
|---|---|
| Part Number | SMD LED 1210 White |
| Brand | Everlight |
| Package Size | 1210 (3.2mm × 2.5mm) |
| Color | White |
| Forward Voltage | 3.0V – 3.4V (typical) |
| Luminous Intensity | 100 – 120 mcd (typical) |
| Viewing Angle | 120° |
| Applications | Indicators, backlighting, signage, decorative lighting, consumer electronics |
Applications
- Indicator lamps in electronic devices
- Backlight for displays and panels
- Signage and decorative lighting
- Consumer electronics illumination
How to Use
- Solder the SMD LED carefully on a PCB using standard reflow soldering methods.
- Connect to a suitable constant current driver to ensure stable operation.
- Maintain forward voltage between 3.0V – 3.4V for optimal brightness.
- Avoid excessive current to prevent damage and extend LED lifespan.
