Description

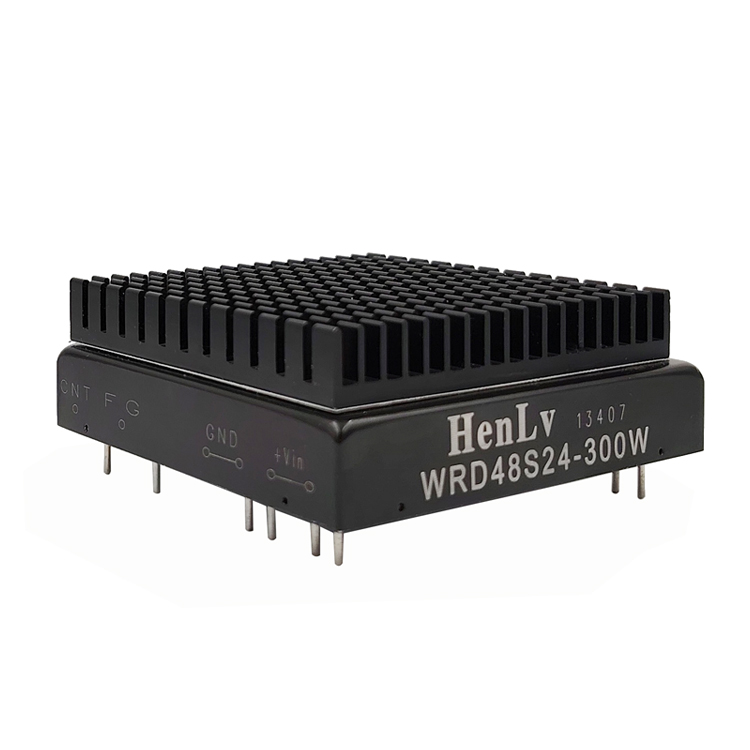

WRD48S24‑300W DC‑DC Converter – 48–72 V to 24 V @12.5 A | 300 W Metal Module
WRD48S24‑300W from HenLv Power is a high-capacity, isolated DC‑DC converter designed for demanding applications. With a 36–72 V DC input and delivering 24 V at 12.5 A, this 300 W module offers stable and reliable power in harsh industrial, telecom, or automation environments. Its rugged metal enclosure enhances thermal management and EMI shielding.
Technical Specifications:
| Specification | Details |
|---|---|
| Part Number | WRD48S24‑300W |
| Input Voltage Range | 36–72 V DC (48 V nominal) |
| Output Voltage / Current | 24 V DC @ 12.5 A (300 W) |
| Power Rating | 300 Watts |
| Efficiency | Typical 85–90% (industry standard ~300 W modules) |
| Isolation Voltage | Typically ≥1.5 kV DC for module class |
| Operating Temperature | –40 °C to +85 °C |
| Enclosure | Metal shielded through‑hole module, compact 76.2 × 76.2 × 24.5 mm |
Key Features & Protections:
- Full galvanic isolation to support industrial safety
- Over-current, over-temperature, and short-circuit protection
- Rugged metal housing for thermal and EMI performance
- Two-year warranty from manufacturer
Applications:
- Industrial automation & control infrastructure
- Telecommunication base station and network power systems
- Embedded computing and instrumentation platforms
- Heavy-duty sensors, robotics, and field devices
- Power distribution in harsh or EMI-critical environments
Purchase the WRD48S24‑300W DC‑DC Converter from GSSuperstore.in—trusted for large-scale isolated power solutions with industrial-grade performance.
